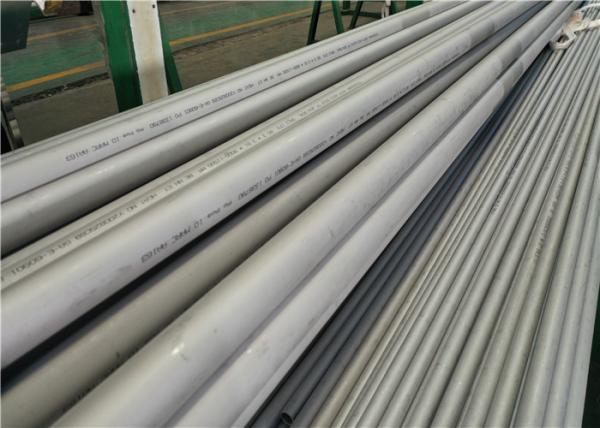

304L 316L 304 Stainless Steel ASTM A213 Heat Exchanger Tubes

  • 1
  • 2
  • 3

Brand Name : HDT

Model Number : Seamless Stainless Tube

Certification : ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008

Place of Origin : China(Mainland)

MOQ : 1T

Price : 800 - 9000 USD / ton

Payment Terms : L/C, T/T, Western Union

Supply Ability : About 10000 ton / month

Delivery Time : 35days

Packaging Details : seaworthy packing for exporting

Standard : ASTM A213 ; ASTM A269 ; ASTM A312 ; EN10216-5 , ect .

Finishing : Annealed & Pickled/Bright Annealed

Application : Boiler&Heat Exchanger, energy, petrochemical, mining, food, paper, gas and fluid industry

Shape : Round seamless

OD : Outdiameter4mm -101.6mm

Thickness : 0.4mm-3.0mm

Contact Now

Stainless Steel Tube for Heat Exchanger Tubes Pipes 304L 316L 304

Stainless steel tube for heat exchanger,evaporater,boiler,condenser,muffler,cooler

Specifications:
1) Diameters: 4 - 76.2mm
2) W.T.: 0.4 - 2.5mm
3) Grades: 316L/304/304L/310S,etc.

4)standard:GB/ISO/EN/ASTM/JIS,etc.

5)application range:widely use in the foodstuff,medical equipment,power,boiler,cooler,auto,condenser etc.

6)packing: inner packing:1 pc/plastic bag;outer packing:bundles in weaving bags or in plywooden case.

Outside path in class deviation mm table 3 Outside path inIIclass deviation mm table 4
Outside path Admission deviation
<25 ±0.10
≥25~38.1 ±0.15
>38.1~50 ±0.20
≥50~63.5 0.25
>63.5~76 ±0.30
≥76~102 ±0.40
Outside path Admission deviation
≤10 ±0.15
>10~32 ±0.20
>32~50 ±0.30
>50 ±0.8%

The thick the deviation of admission( do not include the weld sew) in wall of the weld tube is for ruling the wall thick 10% of ±, but minimum admission deviation is the 0.02 mms of ±.
The weld takes care of of settle Chinese foot length as 3 ms~9 ms, general settle the Chinese foot with the 6 ms.

The weld takes care of of settle the Chinese foot length in usually length, its the deviation of admission is the 5 mms of ±.
Adopt partial the degree of flinch in a the tube of weldfor keeping the Chinese foot measurement should not very in 2.0 mms.
The machine function sees the table 5
table 5

Steel number Card number The heat handles
Make degree
 The anti- pulls the strength
MPa		 Accept defeat the strength
MPa		 Extension rate% Degree of hardnessHRB
0Cr19N19 304 ≥1010°C
Nasty and cold		 ≥520 ≥205 40 ≤90
00Cr19Ni11 304L " " ≥480 ≥175 40 ≤90
0Cr17Ni12M02 316 " " ≥520 ≥205 40 ≤90
0Cr17Ni14M02 316L " " ≥480 ≥175 40 ≤90
0Cr18Ni11Ti 321 ≥920°C
Nasty and cold		 ≥520 ≥205 40 ≤90

304L 316L 304 Stainless Steel ASTM A213 Heat Exchanger Tubes


304L 316L 304 Stainless Steel ASTM A213 Heat Exchanger Tubes
